What movement or energy can cause harm?
Rotating, drawing-in, crushing, cutting, hot, pressurised and ejection hazards need different physical and control measures.
Packaging machine safety engineering
Packaging Machine Guards.
Design, manufacture and installation of guards for fillers, cappers, labellers, wrapping machines, conveyors and complete packaging lines.
- New machinery and retrofits
- Mechanical guarding
- Interlocked access
- UK-wide installation
Guarding built around productionVisibility, changeover, cleaning and fault access considered from the start.
Project coverageOxfordshire based · UK-wide
Delivery scopeSurvey to installation
ApplicationsNew lines and retrofits
Design basisHazard · access · response
Machine-specific guarding
Protect the hazard. Preserve the task.
A useful packaging machine guard controls access without making replenishment, changeover, cleaning and maintenance impractical.
Filling equipment
Filler Machine Guards
Access-controlled guarding for liquid, paste, powder and granular filling machines.
Closure equipment
Capper Machine Guards
Safeguarding around spindle, chuck, press-on and cap-feed mechanisms.
Labelling equipment
Labelling Machine Guards
Visibility-led protection for wrap, front-and-back, sleeve and print-and-apply labellers.
Film and wrapping
Wrapping Machine Guards
Protection around sealing jaws, cutters, film handling, turntables and hot zones.
Product movement
Packaging Conveyor Guards
Protection for drives, transfers, accumulation points and under-conveyor access.
Integrated lines
Complete Line Guarding
A coordinated guarding and access strategy across connected packaging machinery.
Common project requirements
Find the guarding approach your project needs.
Explore focused guidance for retrofit work, controlled access, material selection, surveys and secondary packaging machinery.
Existing equipment
Guarding Retrofits
Made-to-measure upgrades planned around current machinery and production shutdowns.
Controlled access
Interlocked Guards
Guard doors, locking, reset and restart considered as one safeguarding function.
Washdown areas
Stainless Steel Guards
Cleanable guarding for food, beverage, wet and corrosive production areas.
Process visibility
Clear Polycarbonate Guards
Transparent panels and enclosures for monitoring products, labels and film.
Project definition
Machine Guarding Surveys
Structured site evidence for concepts, quotations and practical upgrade scopes.
Secondary packaging
Cartoner & Case Packer Guards
Protection around carton feed, packing, sealing and conveyor transfer hazards.
More packaging machinery applications
Find the machine-specific guarding route.
Detailed guidance now covers the packaging categories buyers most often need to retrofit, integrate or bring into a coordinated line-safety project.
Rigid containers
Bottling Line Guards
Integrated safeguarding for rinsing, filling, capping, labelling and inspection.
VFFS and flexible packs
Form Fill Seal Guards
Protection around film paths, forming tools, sealing jaws, dies and cutters.
Horizontal wrapping
Flow Wrapper Guards
High-visibility guarding for infeeds, film, sealing jaws and discharge.
End-of-line handling
Palletiser & Depalletiser Guards
Fencing, controlled access and protected pallet-transfer openings.
Load wrapping
Pallet Wrapper Guards
Safeguarding for turntable, rotary-arm and ring wrapping systems.
Load securing
Strapping & Banding Guards
Protection for strap feed, sealing heads, presses and conveyors.
Hygienic production
Food & Beverage Packaging Guards
Cleanable guarding developed around washdown and frequent access.
Perimeter separation

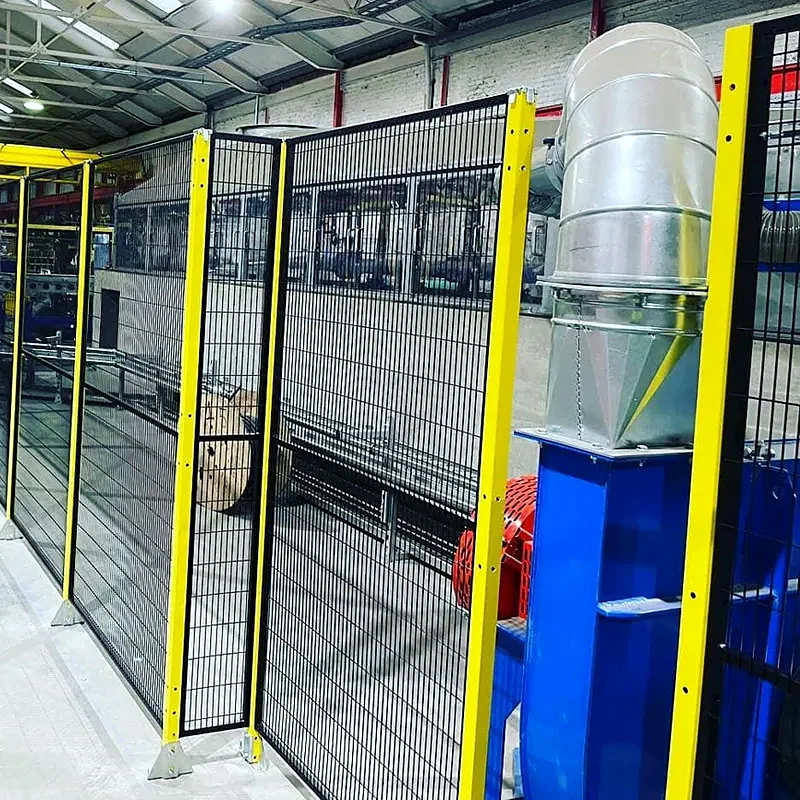

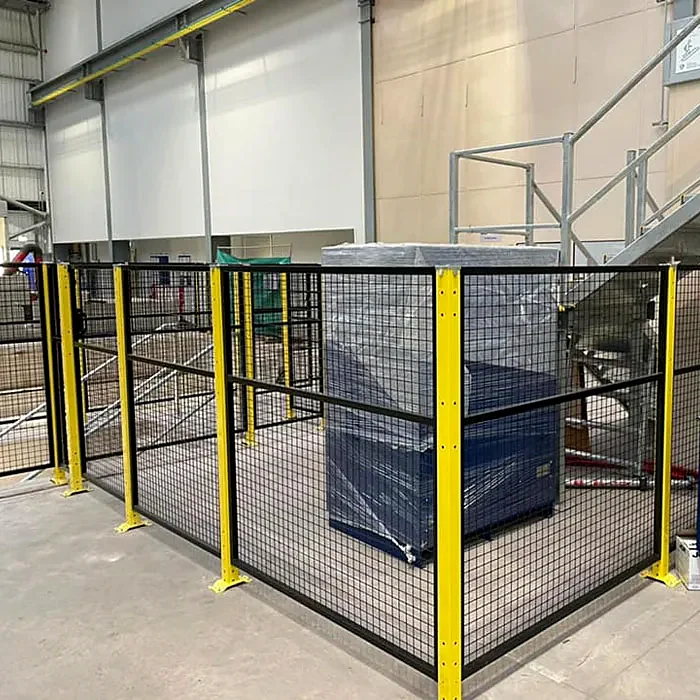

Machine Safety Fencing
Fencing, gates, interlocks and protected material openings.
Packaging line interfaces
Guard the line—not just each machine.
Fillers, cappers, labellers and conveyors create shared hazards where equipment meets. A coordinated design reviews every transfer point, product opening and route into danger.
We develop the physical boundary together with the access strategy and the required machine response. That means doors, removable panels, service access, interlocks, stop zones and reset positions are considered as parts of one safety function.
- Conveyor transfers and container openings
- Format-change and replenishment access
- Cleaning, washdown and product-contact constraints
- Visibility for line monitoring and fault finding
- Upstream and downstream stopping behaviour
Engineering decisions
Six questions shape a better guard.
The right answer comes from observing the process, not selecting panels from a catalogue.
Why and how do people approach?
Production, replenishment, changeover, cleaning, jam clearance and maintenance each create a different access requirement.
What must stop—and how quickly?
The safe state, stop category, run-down, retained energy, reset and restart behaviour must be defined for the relevant zone.
Where must product pass through?
Bottles, caps, labels, film, cartons and packs must move while reach to hazardous parts remains adequately controlled.
What will the guard be exposed to?
Cleaning chemicals, impact, heat, dust, moisture and hygiene requirements influence frame, infill and fixing selection.
How will the work be installed?
Survey accuracy, off-site manufacture, shutdown planning and phased installation help protect production continuity.
Construction options
Visibility, access and containment—resolved together.

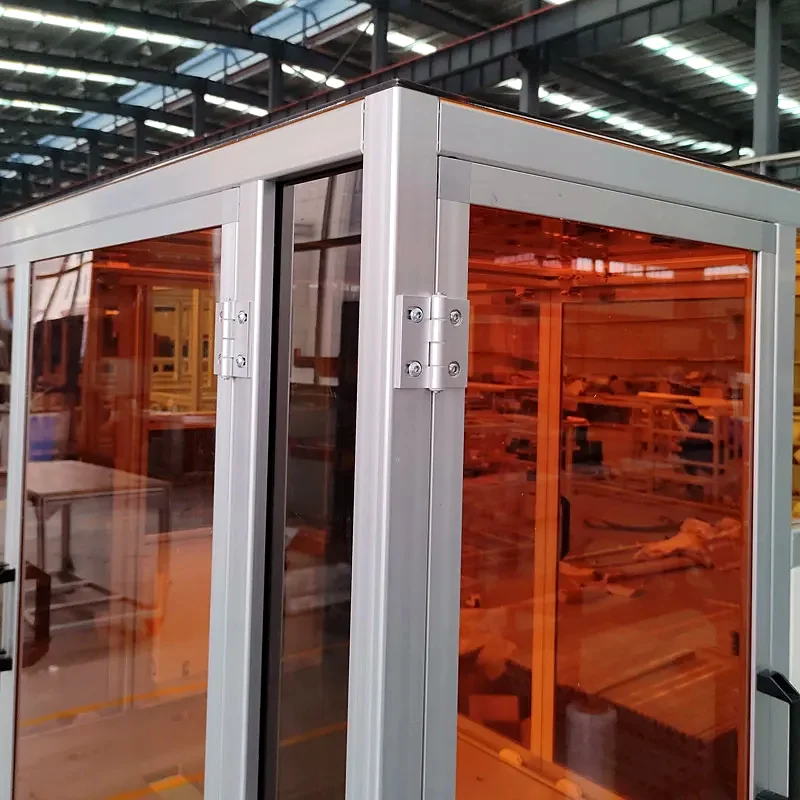

Guard construction is selected around the risk, environment and operating task. The answer may combine several materials and access methods across one line.
- Clear polycarbonate panels for process visibility
- Open mesh for ventilation and wide-area separation
- Sheet-metal infill for containment and restricted visibility
- Stainless-steel construction for demanding washdown areas
- Hinged, sliding or removable access sections

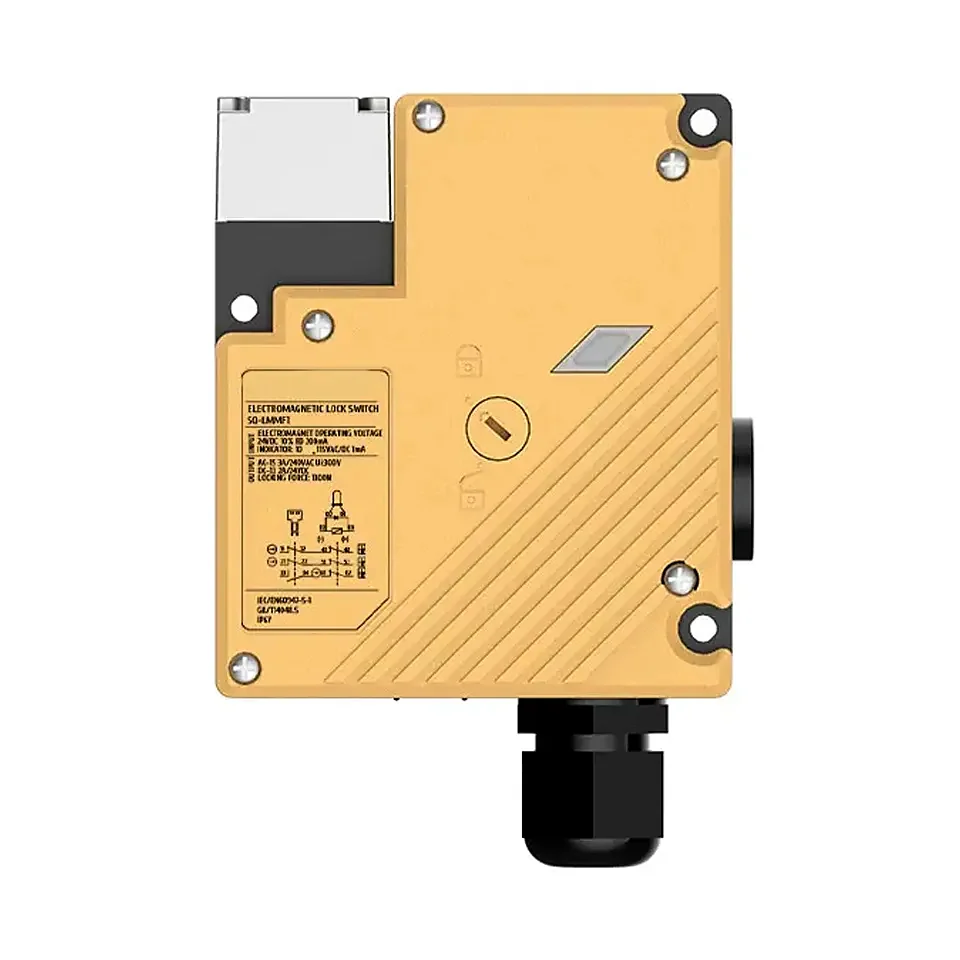

- Interlock switches, guard locking and safety controls
Survey to handover
A controlled project pathway.
Clear scope boundaries and early interface decisions reduce changes during installation.
Survey
Observe machinery, hazards, tasks, access routes, interfaces and stopping behaviour.
Design
Develop the guarding arrangement, materials, access points and safety-function scope.
Manufacture
Fabricate frames, panels, doors, infills and mounting details away from production.
Install
Plan the shutdown, fit the system and integrate agreed interlocks or protective devices.
Handover
Record the agreed checks, provide project information and explain inspection needs.
Useful first review
Evidence makes the first conversation productive.
Send enough context for us to understand the line boundary, the access task and the project constraints.
01Overall photographs and line layout
02Machine makes, models and controls
03Hazards and required access tasks
04Site, shutdown and timescale needs
Direct answers
Questions about packaging machine guarding.
Early decisions about access, stopping and machine interfaces shape the whole guarding project.
Can packaging machine guards be retrofitted to an existing line?
Yes. A retrofit normally begins with a survey of the existing machinery, controls, access needs and production constraints. Guarding can then be designed for the available space and installed within an agreed shutdown window. Any effect on conformity assessment or the machine assembly should be considered as part of the modification scope.
Can clear guards be used so operators can see bottles, labels and film?
Often. Clear polycarbonate or other transparent panels can maintain process visibility, but panel grade, thickness, impact performance, chemical exposure, heat and cleaning methods must be appropriate to the application.
Do all guard doors need interlocks?
Not automatically. The correct safeguard depends on the risk assessment, access frequency, stopping time and ability to reach the hazard. Frequently opened doors around moving hazards commonly require monitored interlocking, and guard locking may be needed where run-down or retained energy prevents an immediate safe stop.
Can one system guard fillers, cappers, labellers and conveyors together?
Potentially. A complete packaging line can be divided into logical safeguarded zones, but the interfaces, stop response, reset locations and whole-body access risks must be engineered for the combined assembly rather than treated as separate pieces of fencing.
Can installation be phased around production?
Often. Accurate survey information and off-site manufacture can reduce site work. Larger projects can be divided by machine or line zone, with temporary arrangements and shutdown boundaries agreed before installation.
What information helps with an initial quotation?
Overall photographs, a layout, machine makes and models, the hazards of concern, current guard and control information, required access tasks, site location and preferred shutdown dates are a strong starting point.
Discuss your project
Start with the machine, the task and the hazard.
Send photographs, a line layout or a short description. We will help define whether the right next step is a desktop review, site survey or guarding concept.
What should a packaging machine guarding review cover?
Follow the pack through feeding, processing and discharge, noting where operators load materials or clear faults. Include cutters, sealing areas, drives and transfer points in the assessment. Review physical guards and control interfaces together, with particular attention to changeover, cleaning and restart after access.

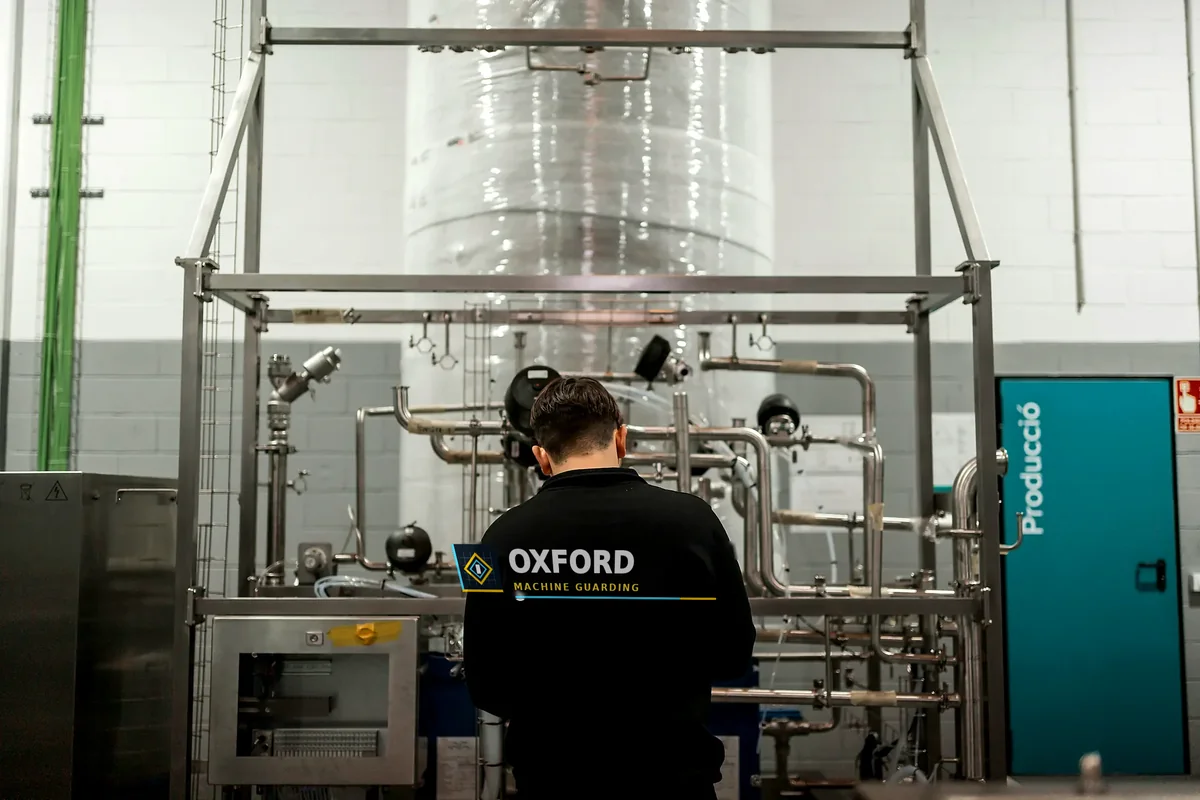

Representative application photography. Garment branding in the site-survey photograph is digitally retouched.
